Multi-Size Beadlock Forged Wheels

You are here: Home » Wheel » Forged Wheel » Off - Road » Multi-Size Beadlock Forged Wheels

Multi-Size Beadlock Forged Wheels

Our full customization process begins at the embryonic design phase, ensuring your vision is built into every detail of the wheel.

Surface Treatments: Options include mirror polishing, precision CNC turning effects, matte/gloss paint in any color, electroplating, and scratch-resistant powder coating.
Branding: Add a laser-etched logo on the center cap or a custom signature along the wheel edge.
Tailored Dimensions: We accommodate special sizes, J-values, and ET offsets (small batch orders welcome).
Spoke Customization: Modify existing spoke designs or submit your own concept—we'll turn it into reality.
Performance-Oriented Machining: Request specific PCD patterns and weight-reducing hollow machining.

Quantity:
Availability:





Inquire Add to Basket

Model:
FR-6AS

Forged Wheel Beadlock Wheel Aluminium Wheel FR-6AS 4X4 Wheel

Product Description

Size	Offset
15x5J	-25
	-30
	0
	+5
15x6J	-25
	-30
	0
	+5
15x7J	-25
	-30
	0
	+5
15x8J	-25
	-30
	0
	+5
16x8J	-30
16x8J	-15
17x7J	-25
	-30
	0
	+5
17x8.5J	-25
	-30
	-38
	0
	+5
17x9J	-20
18x9J	12~+12
20x9J	12~+12
22x9J	12~+12

Product Overview

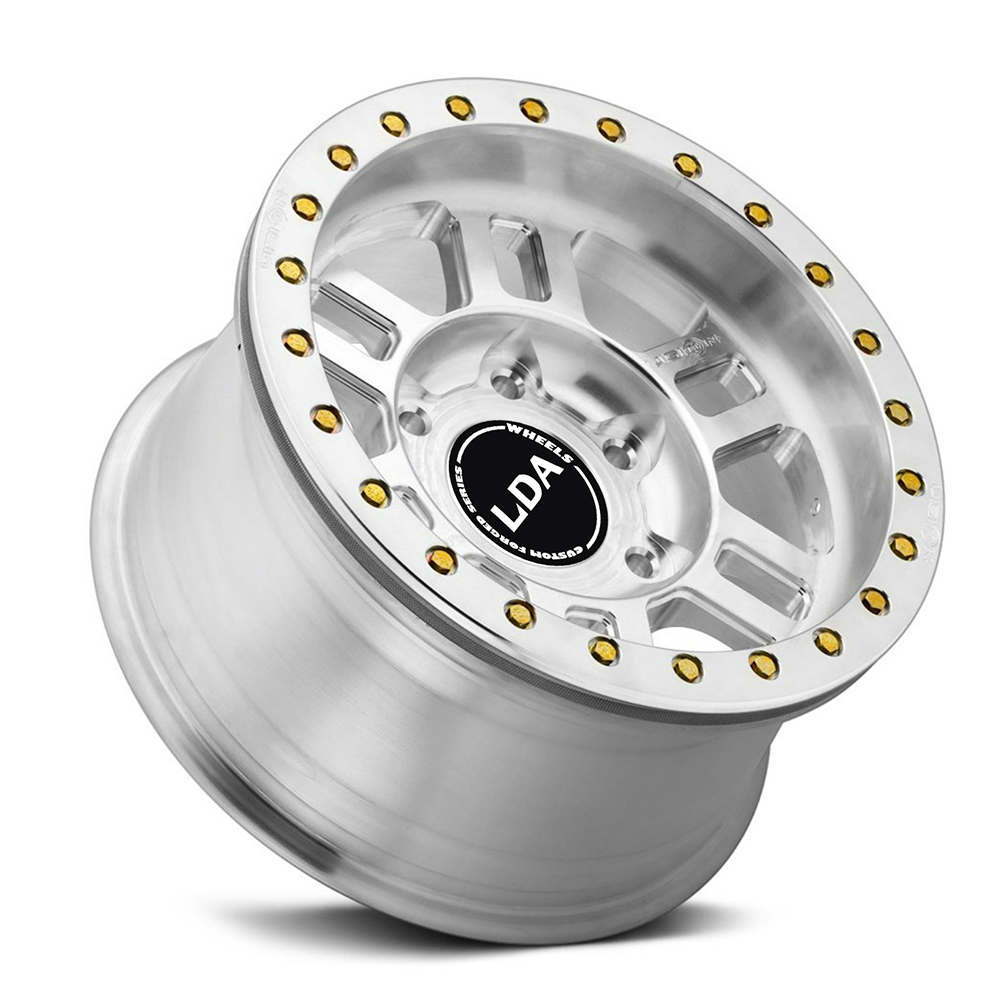

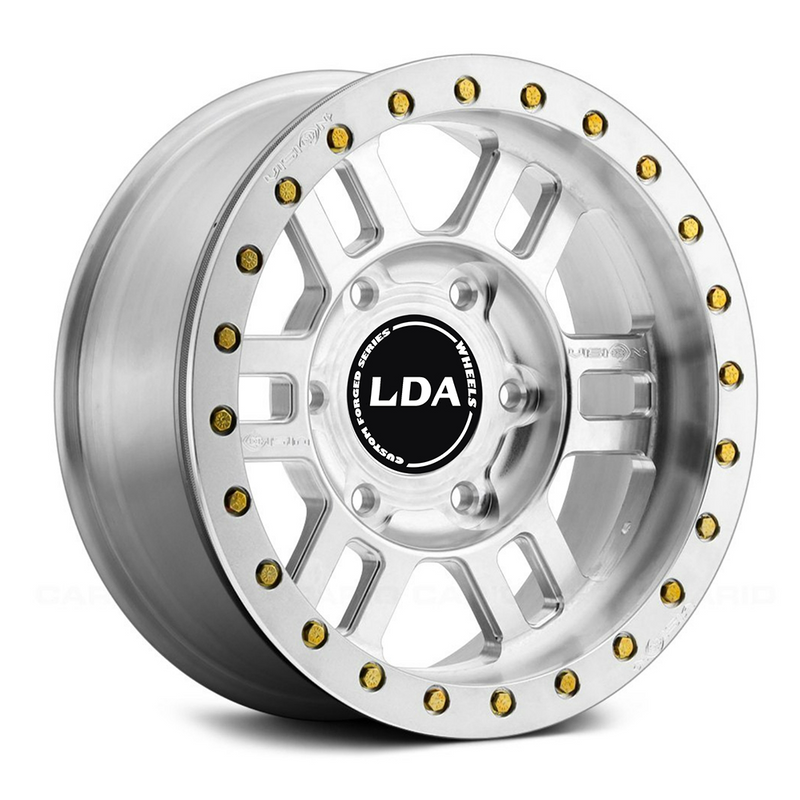

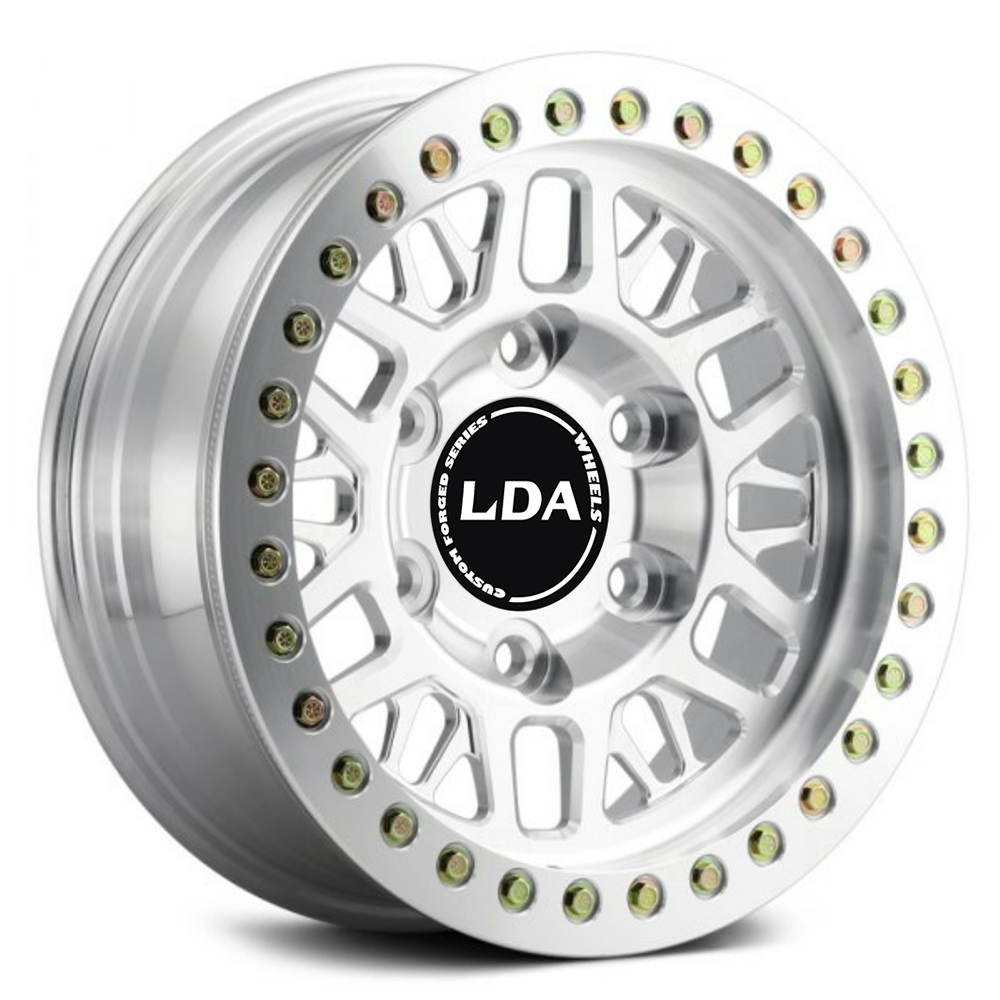

LDA WHEELS unveils the FR-6AS—a precision-sized beadlock forged 4X4 wheel engineered for exact fitment on popular offroad vehicles. With 20+ years of forging expertise, this rim combines single-side beadlock security with tailor-made dimensions, crafted from T6061-T6 forged aluminum alloy. Covering specific sizes (16X8j, 17X7j, 17X8.5j, 18X9j, 20X9j), it eliminates fitment guesswork for stock and lightly modified 4X4s. Certified by DOT, TUV, and VIA, every unit undergoes 100% dimensional testing to ensure zero wheel vibration. The FR-6AS is the go-to for enthusiasts seeking plug-and-play offroad performance.

Multi-Size Beadlock Forged Wheels

Product Features

Precision-Sized Beadlock for Exact Fitment

Each FR-6AS size is engineered for specific tire and vehicle combinations:

16X8j: Fits 31-33 inch tires (Jeep Wrangler TJ, Toyota Tacoma)

17X7j: Optimized for 32-inch tires (Suzuki Jimny, Ford Bronco Sport)

17X8.5j: Supports 33-34 inch tires (Jeep Wrangler JL)

18X9j: Fits 34-35 inch tires (Ford F-150 XLT)

20X9j: Supports 35-inch tires (Ram 1500 Lone Star)

Bead seat angle (12 degrees) ensures tire retention at 5-10 PSI.

T6061-T6 Forged Strength

Cold-forged alloy delivers 45,000 psi tensile strength—35% stronger than cast rims. It withstands 6-inch rock impacts and supports payloads up to 3,600 lbs per rim, ideal for recreational offroading.

Lightweight for Daily-Driver Comfort

At 24-32 lbs, the FR-6AS is 17% lighter than steel beadlock rims. This enhances:

Highway ride quality (reduces vibration)

Steering responsiveness in urban traffic

Fuel efficiency by 1.2 MPG (daily commutes)

Nano-Ceramic Corrosion Protection

A dual-coat finish (epoxy primer + nano-ceramic topcoat) resists mud, road salt, and UV damage. It passes 500+ hours of salt-spray testing, suitable for all-season use.

Vehicle-Specific Offsets

Tailored offsets prevent wheel-well rubbing:

16X8j: -38 offset

17X7j: -25 offset

17X8.5j: -30 offset

18X9j: -38 offset

20X9j: -30 offset

No spacers or fender trimming required for most stock/lifted setups.

Applications

Recreational Offroad Use

Trail Driving: Beadlock security for forest and mountain trails.

Beach Cruising: Corrosion resistance for saltwater environments.

Daily-Driver 4X4s: Lightweight design for urban commutes + offroad weekends.

Vehicle Compatibility

Compact 4X4s: Suzuki Jimny, Ford Bronco Sport Badlands.

Mid-Size Trucks: Toyota Tacoma TRD Off-Road, Chevrolet Colorado Z71.

Full-Size SUVs: Jeep Grand Cherokee Trailhawk, Ford Expedition Timberline.

FAQ

Why are specific sizes better than universal rims?

Precision sizing eliminates wheel vibration, tire rub, and the need for spacers—saving time and money on installation.

What tire size fits the 17X8.5j FR-6AS?

Ideal for 33x10.5R17 (stock Jeep Wrangler JL) or 34x11.5R17 (2-inch lifted models).

Is the FR-6AS compatible with factory TPMS?

Yes—all sizes include pre-drilled TPMS holes matching OE specifications.

What’s the lead time for FR-6AS orders?

Standard sizes ship in 35-45 days after deposit—faster than custom-sized rims.
